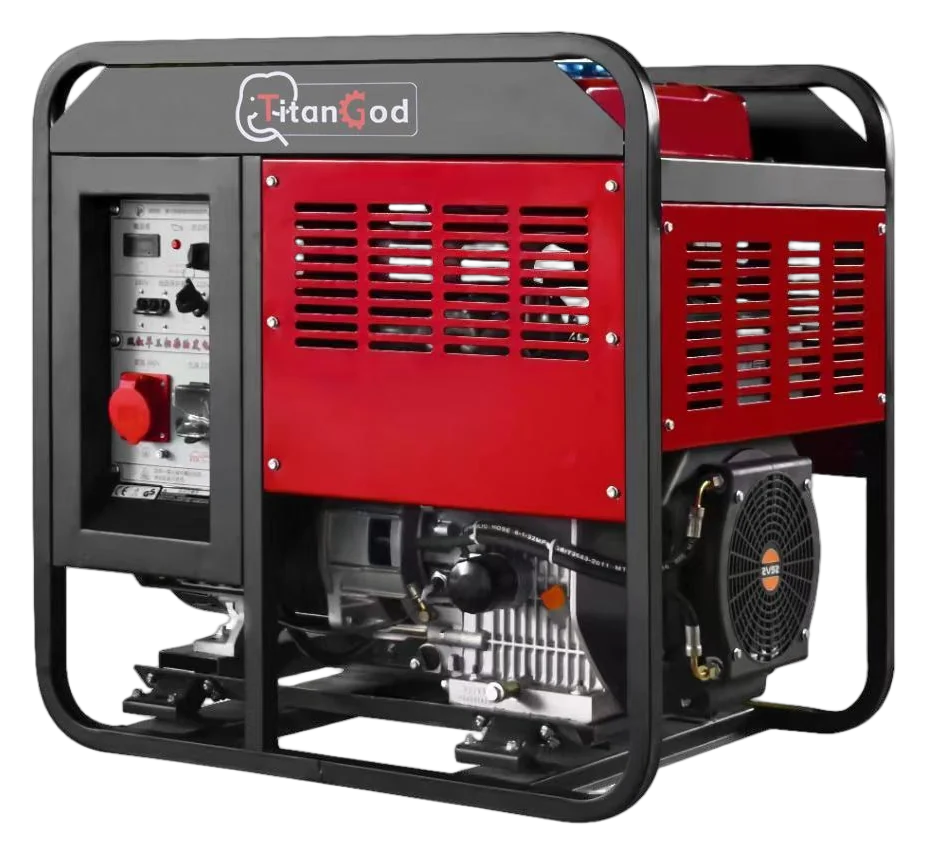

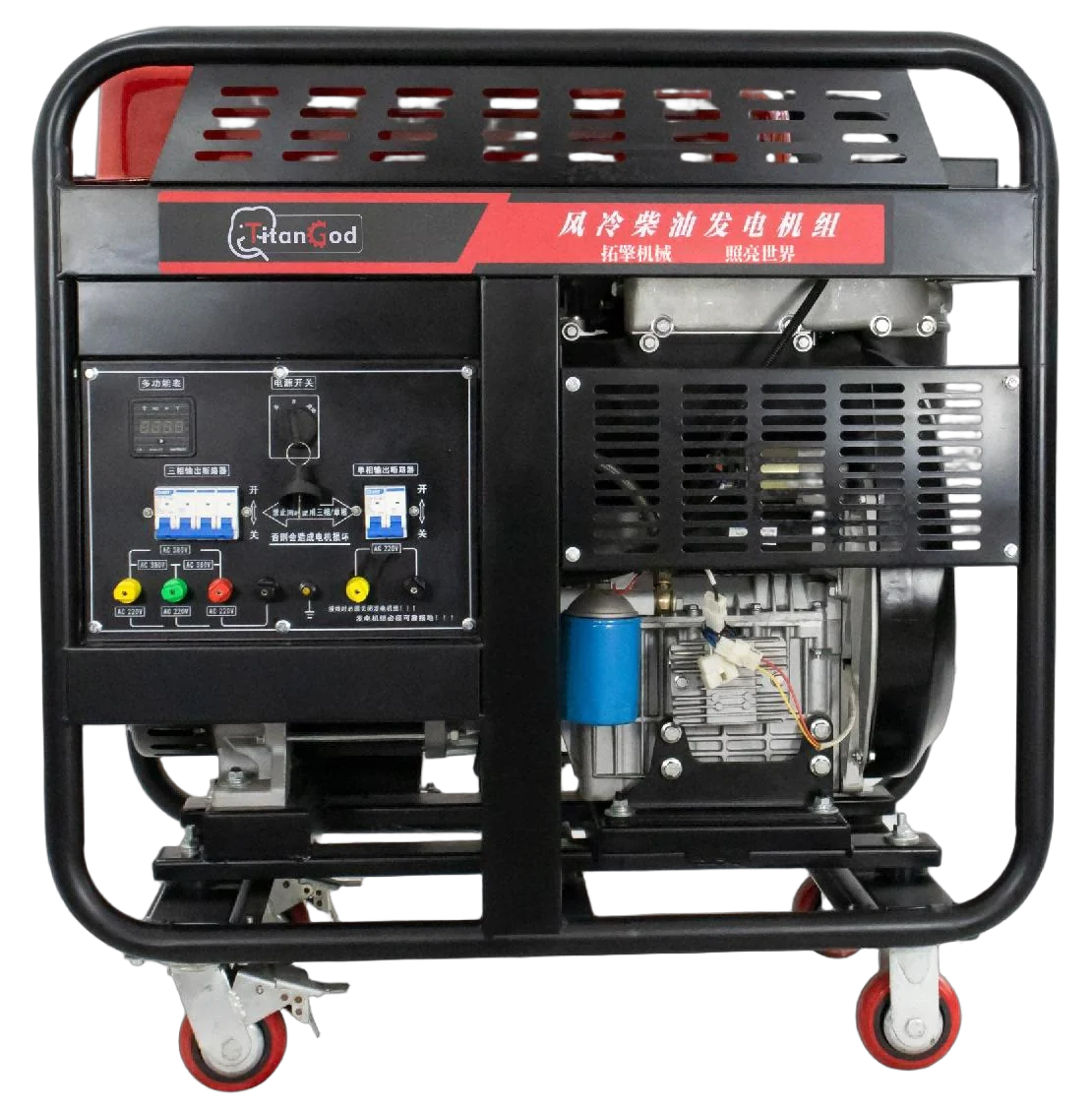

Product image 1Product appearance may vary by model and configuration. Please refer to the final confirmed documents.
Portable Generators · High-Output Open-Frame Diesel Generator
T12800CE / T13000CE / T10000CE Open-Frame Diesel Generators
Models: T12800CE / T13000CE / T10000CE
8.0–10.0 kW rated output with 220/400 V output options.
This page groups images and specifications for related models so you can compare output, capacity, starting method, dimensions, and weight.
Specifications are organized from the supplied product information. Confirm frequency, voltage, phase, starting method, and optional features before ordering.
Product features
Series Overview
- 195F air-cooled diesel engine
- 220/400 V output
- Brush self-excited regulation with AVR
- 8.0–10.0 kW rated output
Model Range
This group includes 3 models
- Product Category
- High-Output Open-Frame Diesel Generator
- Model
- T12800CE / T13000CE / T10000CE
- Data Source
- Company product information
Model Comparison
Reference details
Scroll horizontally to view all models.
| Specification | T12800CE | T13000CE | T10000CE |
|---|---|---|---|
| Engine Model | 195F | 195F | 195F |
| Lubricating Oil Grade | SAE 10W-30 (CD grade or above) | SAE 10W-30 (CD grade or above) | SAE 10W-30 (CD grade or above) |
| Lubricating Oil Capacity | 1.65 L | 1.65 L | 1.65 L |
| Fuel | No. 0 or -10 light diesel | No. 0 or -10 light diesel | No. 0 or -10 light diesel |
| Engine Type | Single-cylinder, vertical, four-stroke, air-cooled diesel engine | Single-cylinder, vertical, four-stroke, air-cooled diesel engine | Single-cylinder, vertical, four-stroke, air-cooled diesel engine |
| Bore × Stroke | 82×75 mm | 88×75 mm | 88×75 mm |
| Frequency | 50 Hz | 50 Hz | 50 Hz |
| Rated Voltage | 220/400 V | 220/400 V | 220/400 V |
| Rated Output | 8.0 kW | 9.0 kW | 10.0 kW |
| Maximum Output | 8.5 kW | 9.5 kW | 10.5 kW |
| Excitation | Brush self-excited constant-voltage system with AVR | Brush self-excited constant-voltage system with AVR | Brush self-excited constant-voltage system with AVR |
| Starting Method | Manual start | Manual start | Manual start |
| Packaging Dimensions | 710×550×690 mm | 730×550×690 mm | 730×555×690 mm |
| Net Weight | 120 kg | 133 kg | 153 kg |
Shared specifications not listed separately for each model are shown as common configurations for the group. Final specifications are subject to the quotation confirmation.
Before you inquire
Confirm the Required Configuration
Provide the target model, rated output, output voltage, frequency, phase, starting method, estimated quantity, and destination.
