Portable Generators · Open-Frame Inverter Gasoline Generator

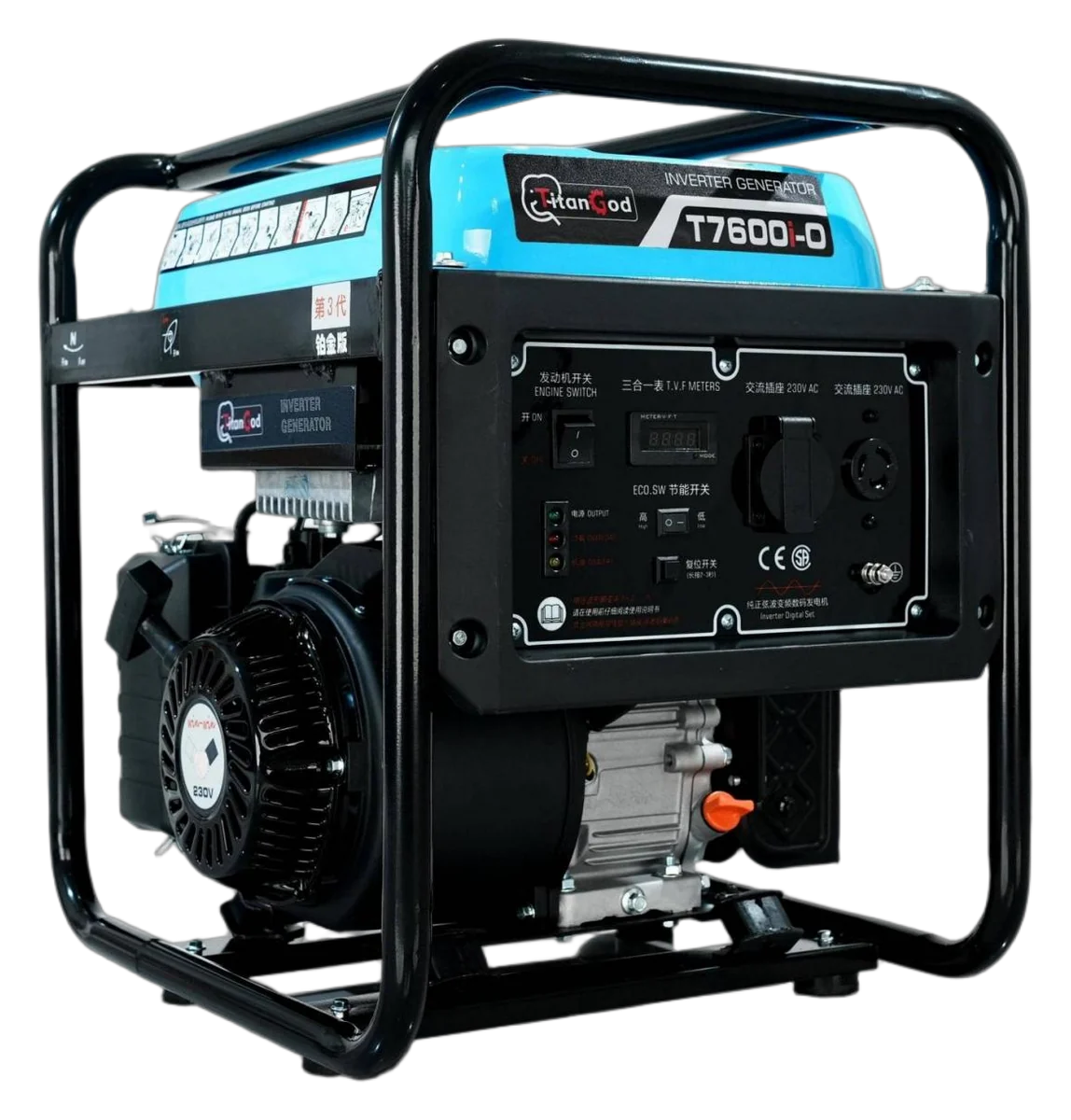

T6000i-O / T7600i-O Open-Frame Inverter Generators
Models: T6000i-O / T7600i-O
4.6–5.25 kW rated output with a 12 L fuel tank for longer mobile-power operation.
This page groups images and specifications for related models so you can compare output, capacity, starting method, dimensions, and weight.
Specifications are organized from the supplied product information. Confirm frequency, voltage, phase, starting method, and optional features before ordering.
Product features
Series Overview
- Open-frame design
- Total harmonic distortion up to 3%
- Recoil start
- 12 L fuel tank
Model Range
This group includes 2 models
- Product Category
- Open-Frame Inverter Gasoline Generator
- Model
- T6000i-O / T7600i-O
- Data Source
- Company product information
Model Comparison
Reference details
Scroll horizontally to view all models.
| Specification | T6000i-O | T7600i-O |
|---|---|---|
| Engine Displacement | 236 cc | 223.8 cc |
| Engine Oil Capacity | 0.6 L | 0.6 L |
| Fuel Tank Capacity | 12 L | 12 L |
| Run Time at 50% Load | 7.5 h | 7 h |
| Frequency | 50 Hz | 50 Hz |
| Rated Voltage | 230 V | 230 V |
| Rated Output | 4.6 kW | 5.25 kW |
| Maximum Output | 5.0 kW | 6.0 kW |
| Total Harmonic Distortion (THD) | ≤3% | ≤3% |
| Rated Current | 20 A | 23.9 A |
| Starting Method | Recoil start | Recoil start |
| Noise at 7 m and 50% Load | 70 dB | 71 dB |
| Product Dimensions | 500×425×530 mm | 500×425×530 mm |
| Packaging Dimensions | 525×450×560 mm | 525×450×560 mm |
| Net Weight | 33.1 kg | 33.6 kg |
Shared specifications not listed separately for each model are shown as common configurations for the group. Final specifications are subject to the quotation confirmation.
Before you inquire
Confirm the Required Configuration
Provide the target model, rated output, output voltage, frequency, phase, starting method, estimated quantity, and destination.
