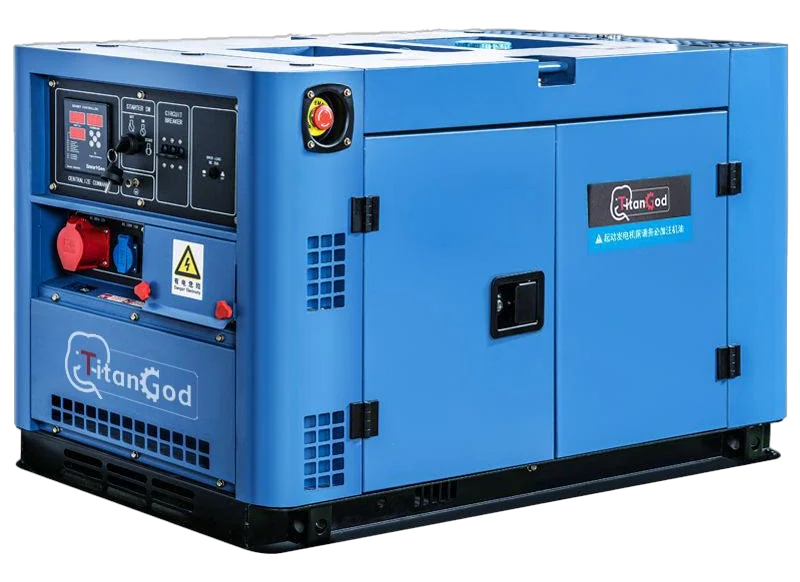

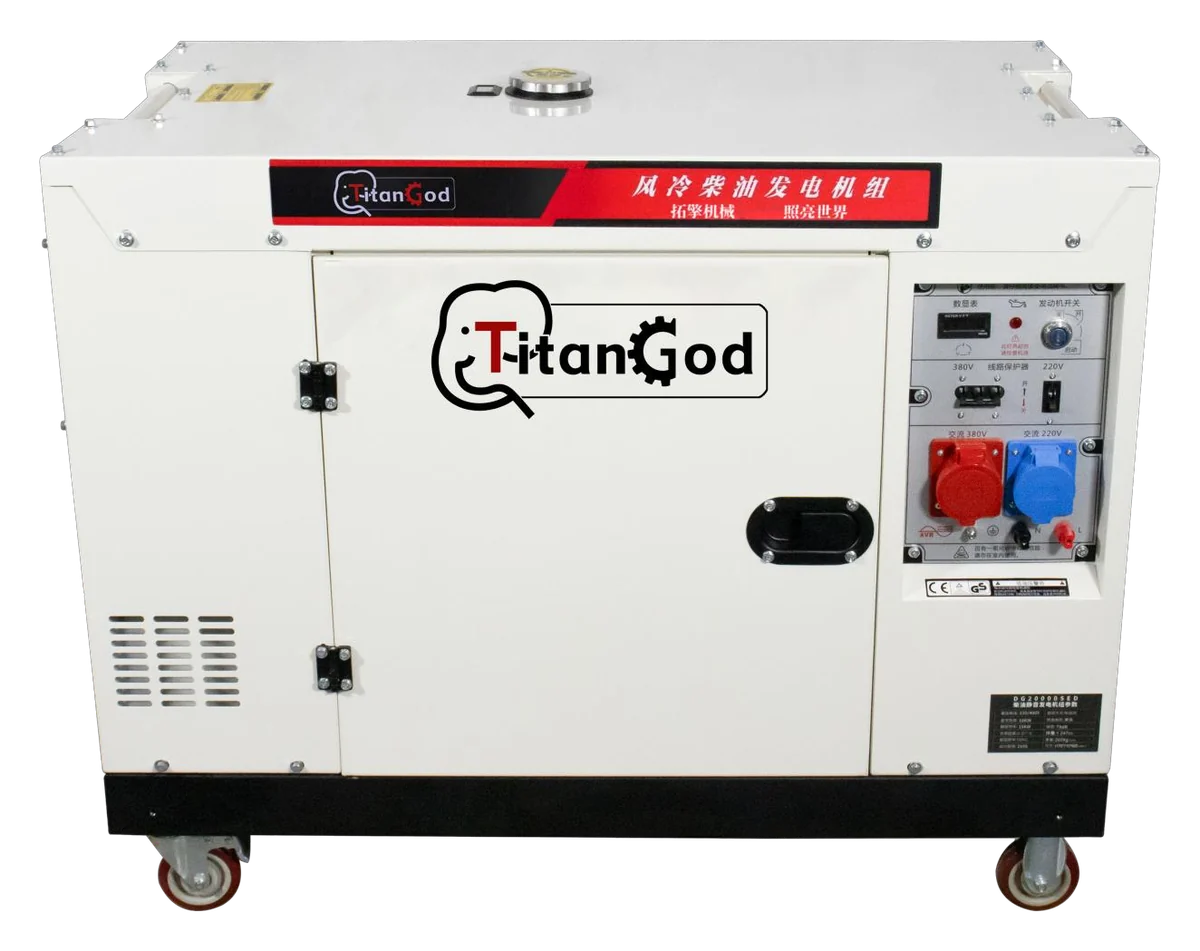

Product image 1Product appearance may vary by model and configuration. Please refer to the final confirmed documents.
Portable Generators · Silent Diesel Generator
T4000T–T11000T Silent Diesel Generators
Models: T4000T / T7800T / T8800T / T11000T
3.0–8.0 kW silent diesel generators with single-phase and three-phase configurations.
This page groups images and specifications for related models so you can compare output, capacity, starting method, dimensions, and weight.
Specifications are organized from the supplied product information. Confirm frequency, voltage, phase, starting method, and optional features before ordering.
Product features
Series Overview
- Silent enclosure design
- Electric start
- Four-stroke diesel engine
- 230 V and 230/400 V configurations
Model Range
This group includes 4 models
- Product Category
- Silent Diesel Generator
- Model
- T4000T / T7800T / T8800T / T11000T
- Data Source
- Company product information
Model Comparison
Reference details
Scroll horizontally to view all models.
| Specification | T4000T | T7800T | T8800T | T11000T |
|---|---|---|---|---|
| Rated Output | 3.0 kW | 5.0 kW | 6.0 kW | 8.0 kW |
| Maximum Output | 3.5 kW | 5.5 kW | 6.5 kW | 8.5 kW |
| Rated Voltage | 230 V | 230/400 V | 230/400 V | 230 V |
| Frequency | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
| Power Factor | 1.0 / 0.8 | 1.0 / 0.8 | 1.0 / 0.8 | 1.0 / 0.8 |
| Starting Method | Electric start | Electric start | Electric start | Electric start |
| Engine Oil Capacity | 1.1 L | 1.65 L | 1.65 L | 1.65 L |
| Fuel | Diesel | Diesel | Diesel | Diesel |
| Bore × Stroke | 78×62 mm | 88×75 mm | 92×75 mm | 100×85 mm |
| Engine Configuration | Four-stroke | Four-stroke | Four-stroke | Four-stroke |
| Lubricating Oil Grade | CF-4 15W-40 | CF-4 15W-40 | CF-4 15W-40 | CF-4 15W-40 |
| Engine Model | 178FE | 188FE | 192FE | 1100FE |
| Displacement | 276 cc | 456 cc | 498 cc | 276 cc |
| Fuel Tank Capacity | 12.5 L | 16 L | 16 L | 16 L |
| Dimensions | 770×540×600 mm | 925×535×695 mm | 925×535×695 mm | 970×600×830 mm |
| Weight | 100 kg | 164 kg | 169 kg | 195 kg |
Shared specifications not listed separately for each model are shown as common configurations for the group. Final specifications are subject to the quotation confirmation.
Before you inquire
Confirm the Required Configuration
Provide the target model, rated output, output voltage, frequency, phase, starting method, estimated quantity, and destination.
