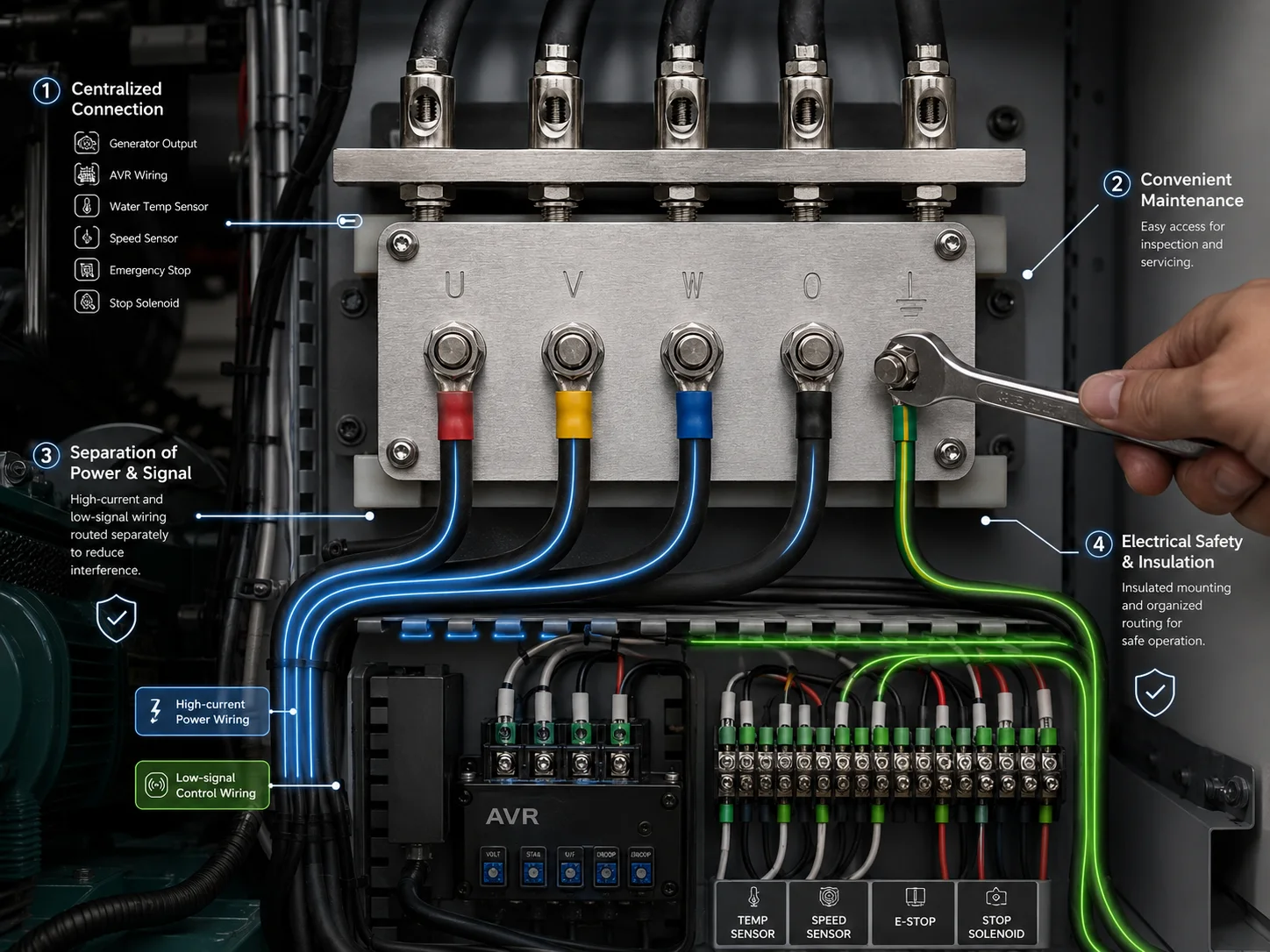

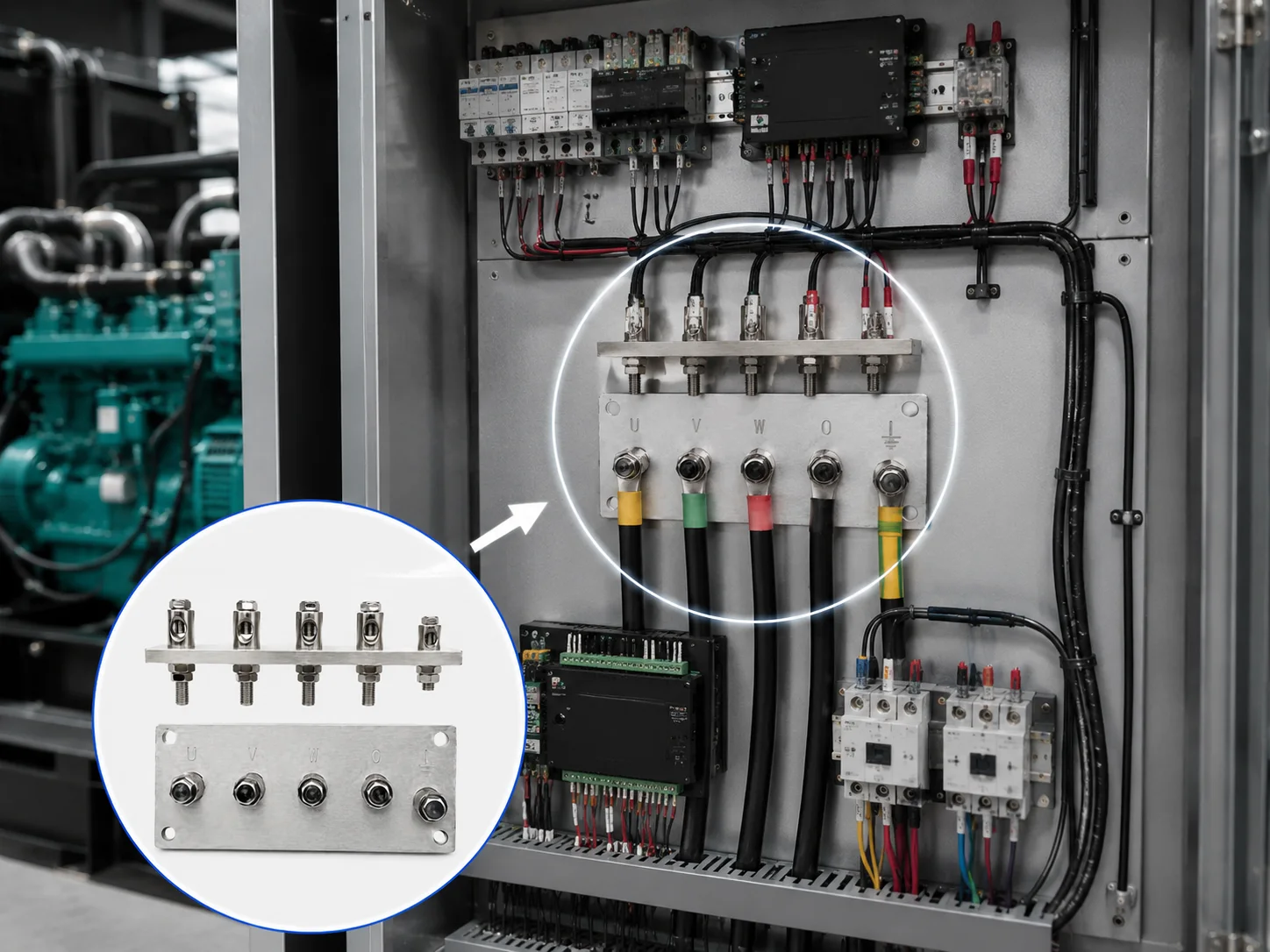

Product photoApplication illustrations show example uses and may differ from the exact product supplied.
Silent Enclosures · Electrical Control
Generator Terminal Boards

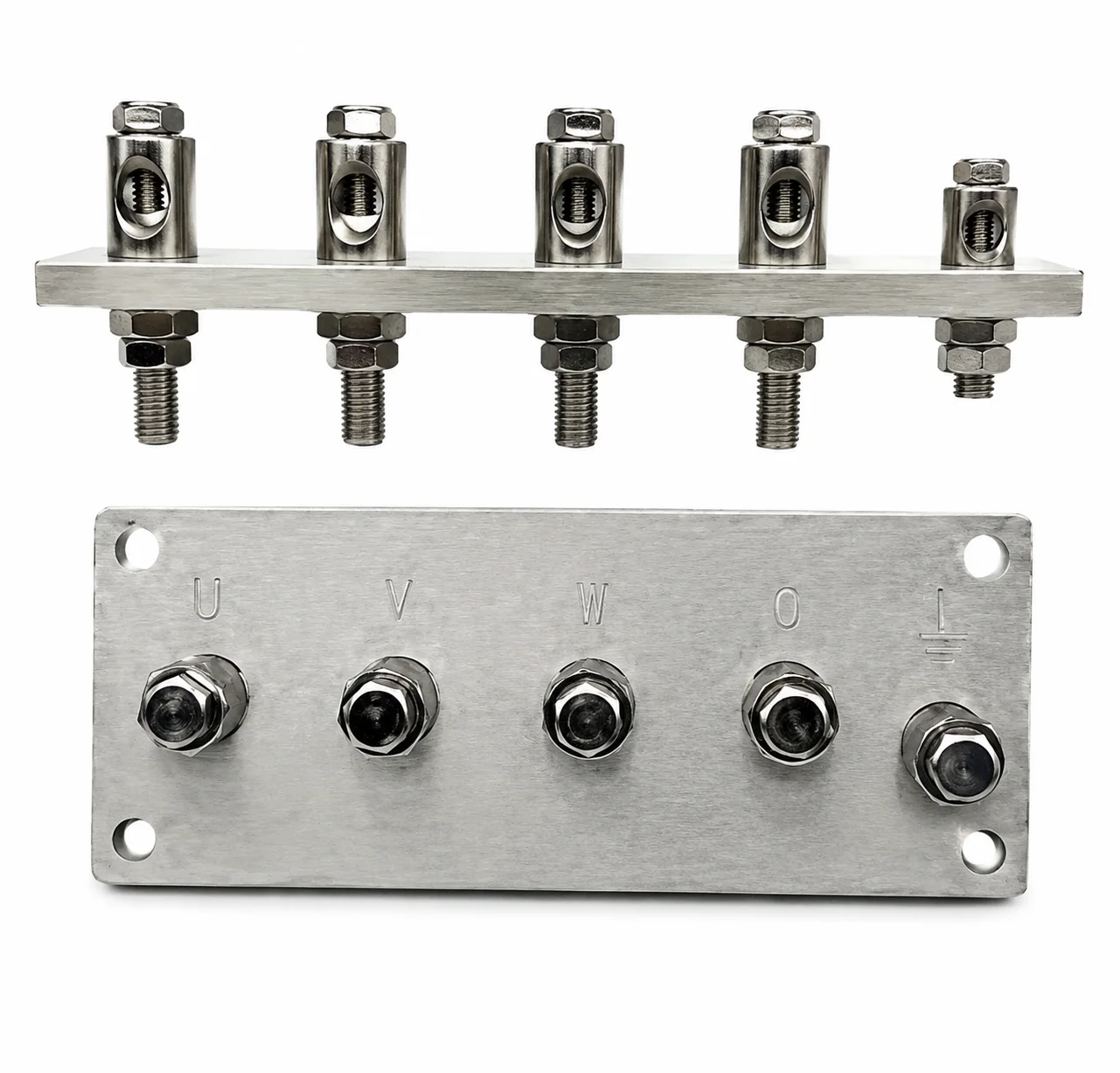

Terminal board
High-current connection boards for generator output and control equipment.
A terminal board provides a central connection point for generator output conductors, distribution equipment, and protective earth. The configuration must match the electrical design.
Reference values are taken from the supplied product notes. Confirm the exact specification before ordering.
Product features
What this product does
- Organizes output connections
- Supports identification of line, neutral, and earth terminals
- Allows access for inspection and tightening
Supplied product information
Reference details
- Current range stated
- 180–1000 A
- Reference length
- 478 mm
- Reference width
- 150 mm
- Materials stated
- Copper, brass, or tinned copper
Before you inquire
Confirm the right version
Confirm voltage, current, terminal count, stud dimensions, and mounting-hole layout.
