Silent Enclosures · Fuel System

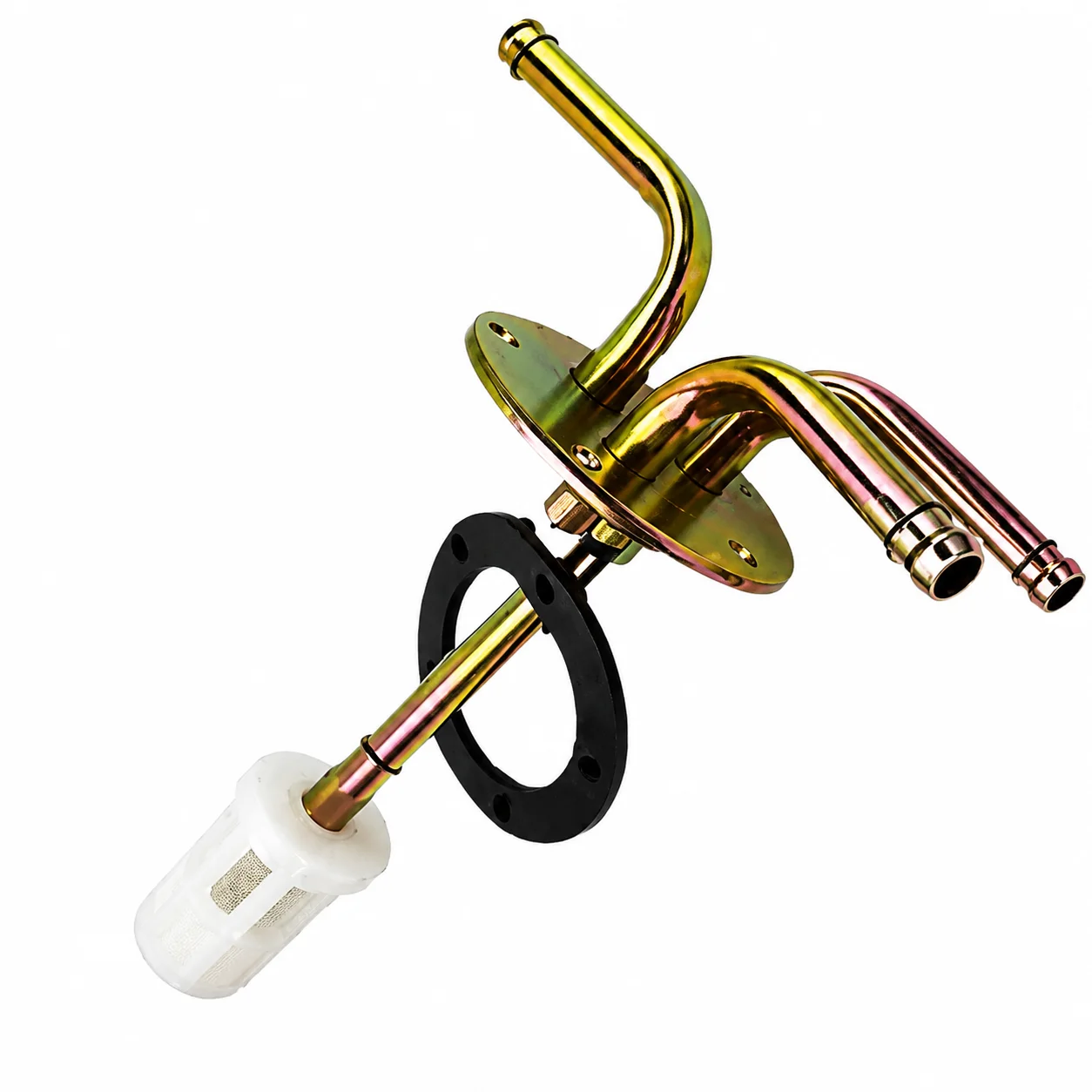

Fuel Feed, Return & Vent Assemblies
Fuel feed, return, and vent tee
Combined fuel feed, return, and tank vent connections for generator tanks.

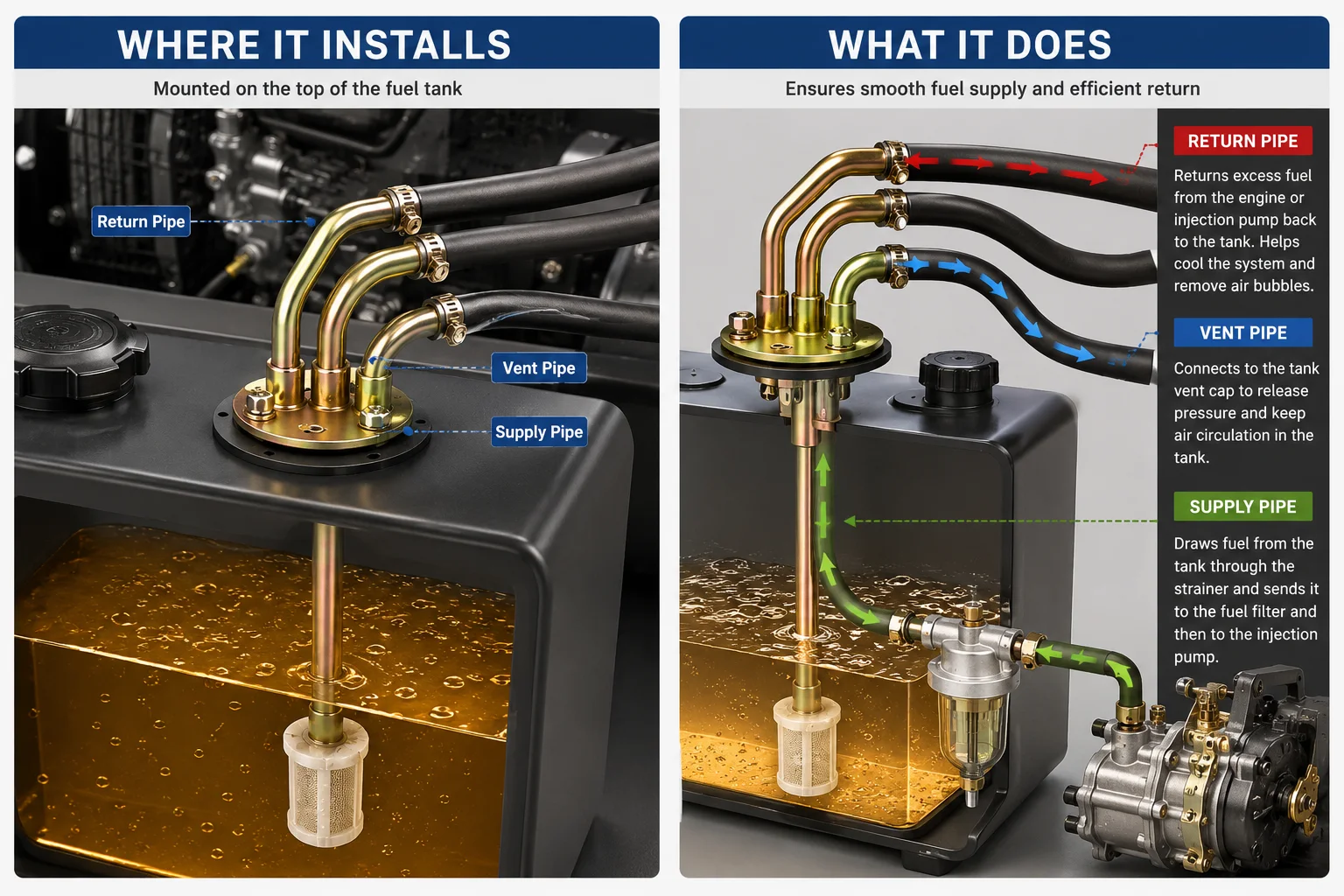

This assembly brings multiple fuel tank connections together at one flange. The supplied description covers fuel pick-up, return, and vent functions; the exact pipe arrangement should be confirmed against the tank design.
Reference values are taken from the supplied product notes. Confirm the exact specification before ordering.
Product features
What this product does

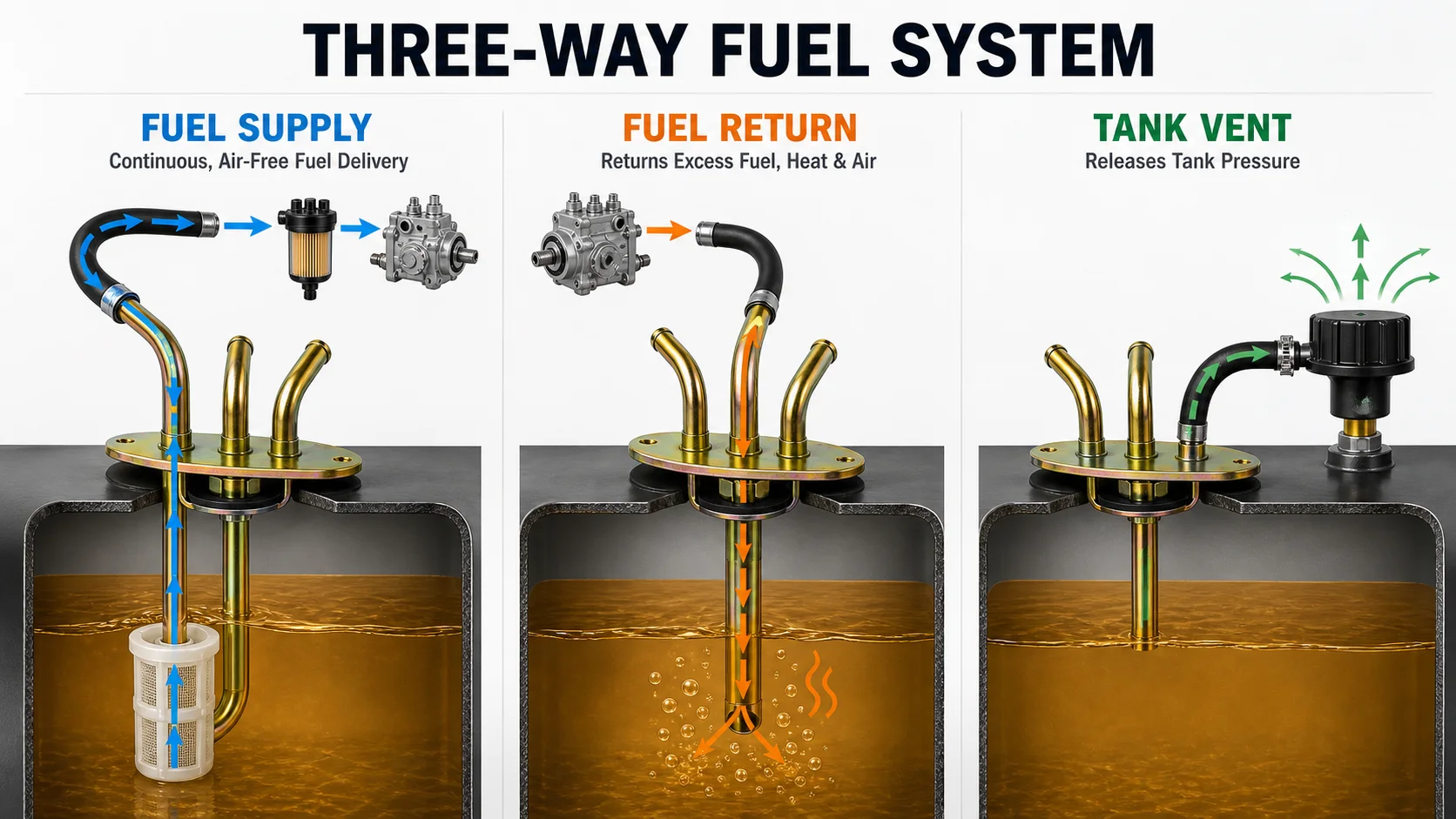

- Combines feed, return, and vent connections
- Can reduce the number of tank openings
- Flange arrangement supports sealed installation
Supplied product information
Reference details
- Reference length range
- 20–700 mm
- Materials stated
- Brass
Before you inquire
Confirm the right version
Confirm flange, hole spacing, pipe diameters, insertion depth, hose ports, fuel flow, and any valve direction.
