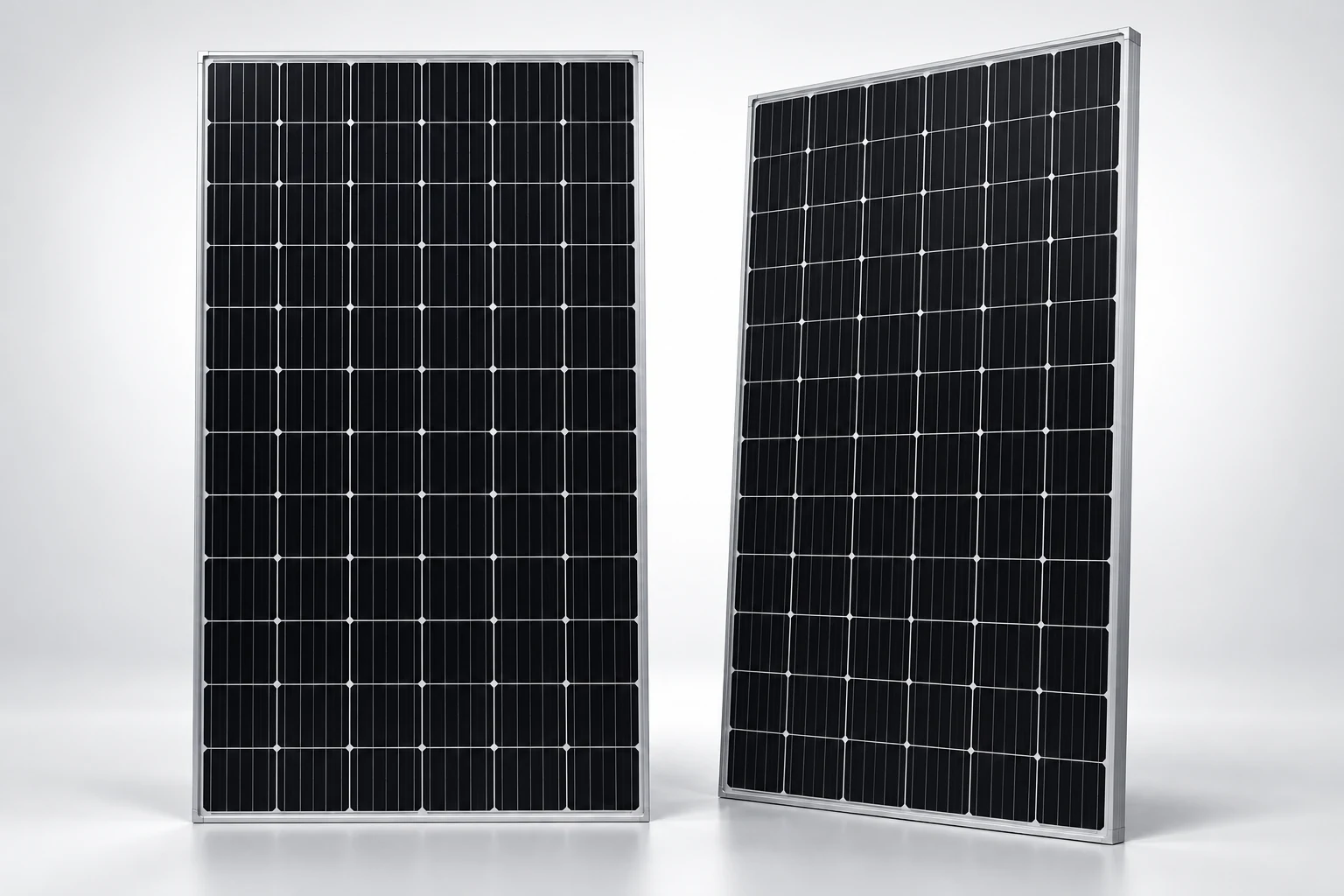

Grade-A monocrystalline modules
High-efficiency monocrystalline modules are used, with power and quantity configured for the system.
Package overviewClick a thumbnail to view the package and core components. The original watermarks and explanatory text have been removed; the page specifications are newly organized reference information.
Solar PV Series · Off-Grid Solar Power Package
10kW Off-Grid Solar Power System
System ID: SP-OFFGRID-10K
Expandable solar-storage system for villas, farms, offices, and multi-load off-grid applications.
Reference daily generation: 33 kWh/day; storage capacity: 20.48 kWh. Intended use: villas, farms, and multi-load off-grid applications.
Provide the destination country, load power, daily energy use, required backup time, installation method, and local voltage and frequency. We will use this information to verify the PV, storage, and inverter configuration.
Product features
System Overview
- Integrated PV generation, lithium storage, and inverter output
- Supports BMS communication and optional remote monitoring
- Storage capacity can be expanded according to the load and backup-time requirement
- Modules, cables, and mounting can be adjusted to the project site
Reference Package
10kW Off-Grid Package
- PV capacity
- 6.6 kWp
- Daily generation
- approximately 33 kWh/day
- Storage capacity
- approximately 20.48 kWh
- Installation area
- approximately 40 m²
Configuration List
Reference System Specifications
Verify against project conditions before ordering.
| Specification | Reference Configuration |
|---|---|
| System ID | SP-OFFGRID-10K |
| Inverter output | 10kW |
| PV installed capacity | 6.6 kWp |
| PV modules | 12 × 550 W monocrystalline modules |
| Reference daily generation | approximately 33 kWh/day |
| Reference storage capacity | approximately 20.48 kWh |
| Battery configuration | 51.2 V 100 Ah lithium batteries × 4 |
| Power conversion and control | 10 kW inverter-charger × 1 |
| PV cables | 50 m each of red and black PV cable |
| Mounting structure and accessories | PV mounting structure and accessories × 1 set |
| Reference installation area | approximately 40 m² |
The configuration above is reorganized from the supplied product material. Module brands, models, appearance, protection devices, and system architecture may change according to supply and project requirements.
Core Components
System Components and Functions
Every product group presents the following configuration areas.

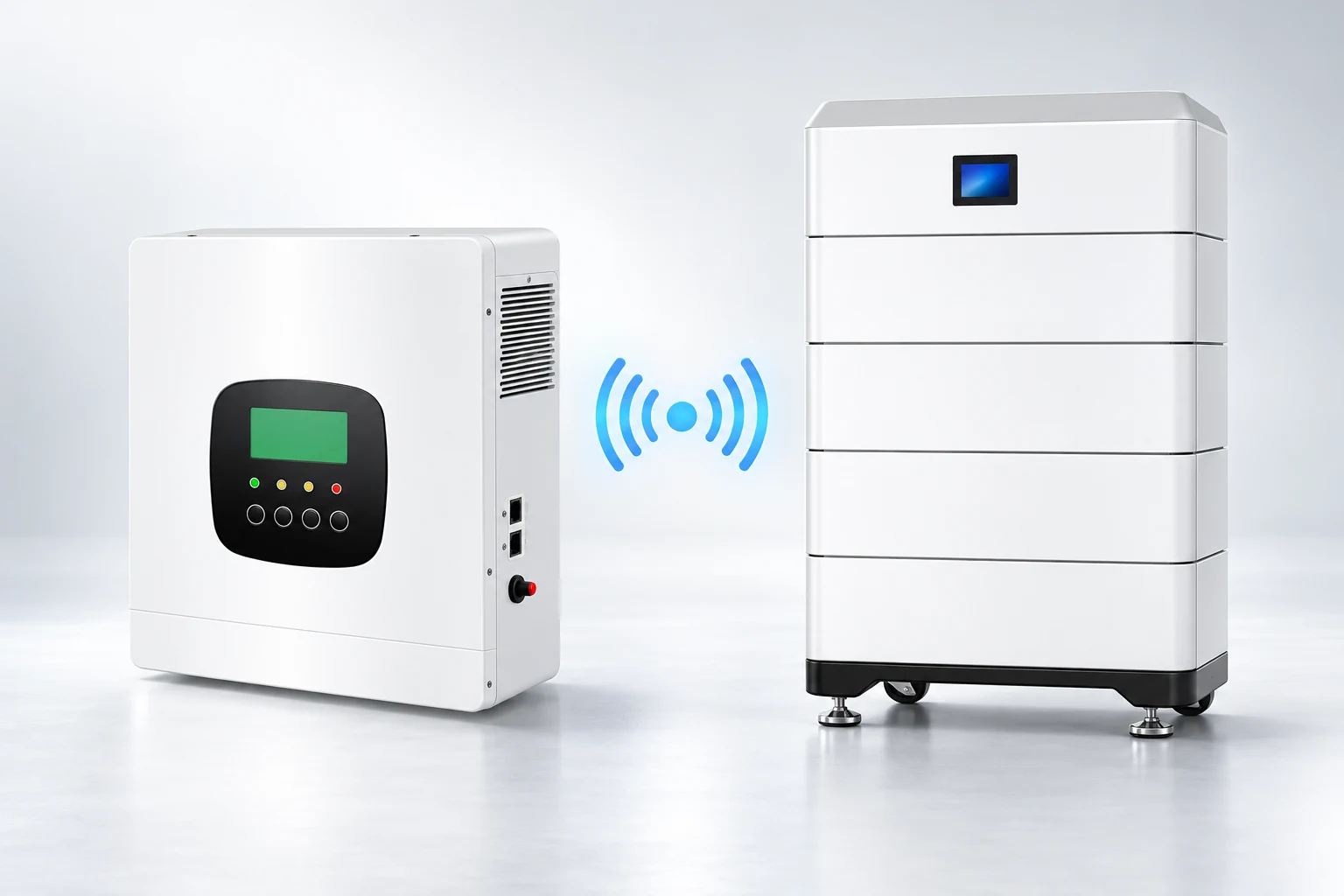

BMS communication management
The inverter and lithium battery support BMS communication for charge-discharge control and battery-status management.

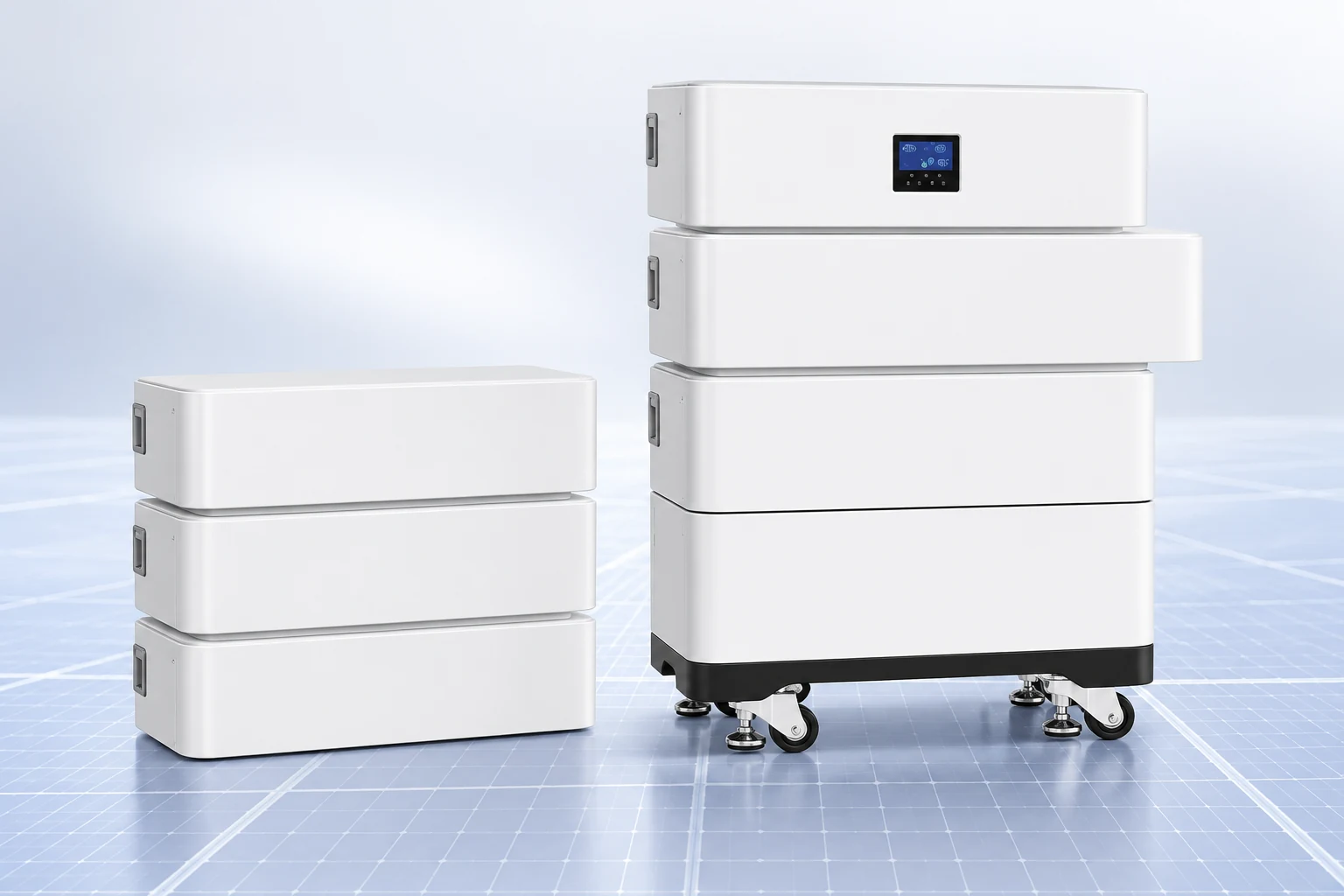

Modular storage expansion
Storage capacity can be expanded according to load and runtime requirements for later system scaling.

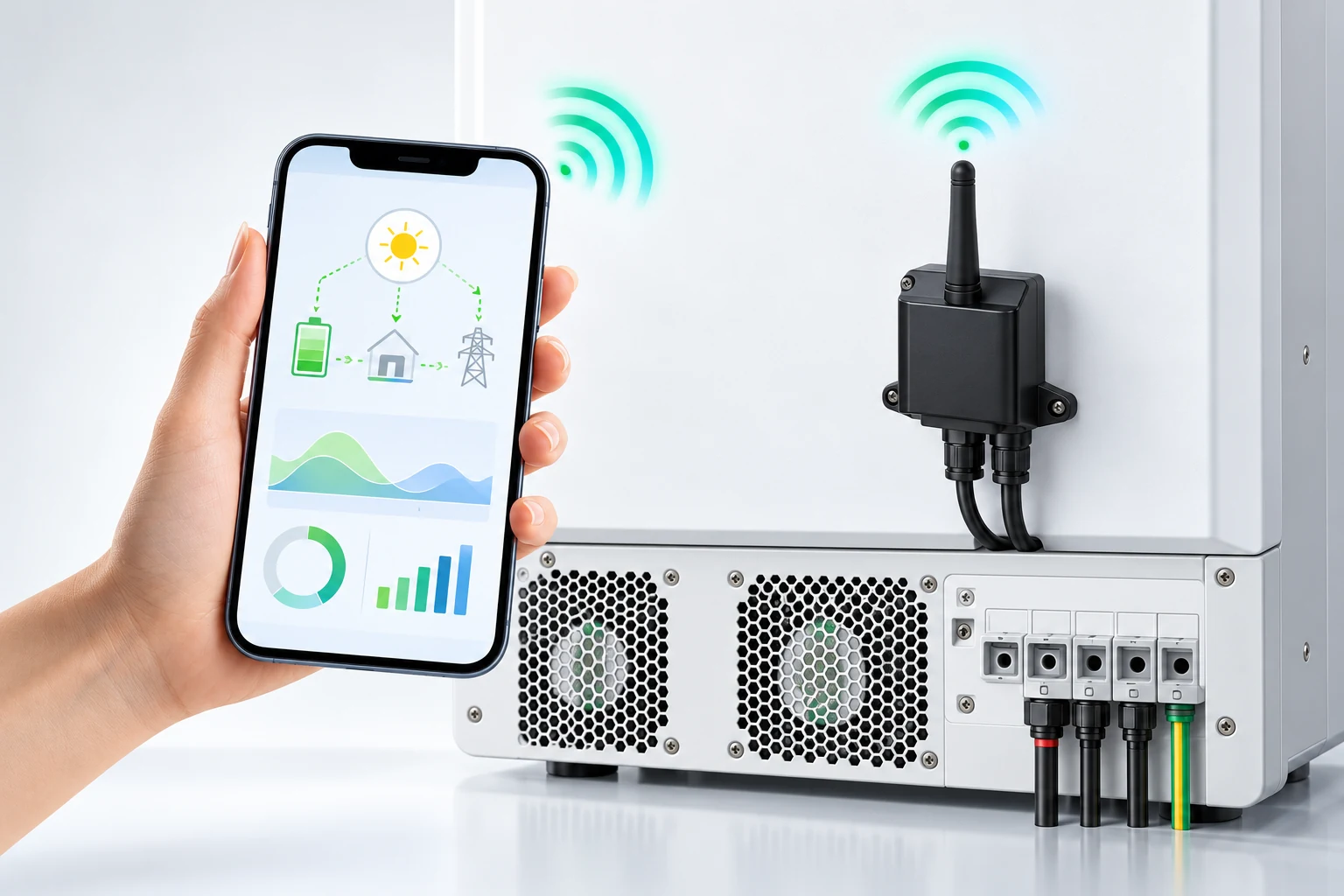

APP remote monitoring
An optional remote monitoring module can display generation, consumption, and storage operating status.

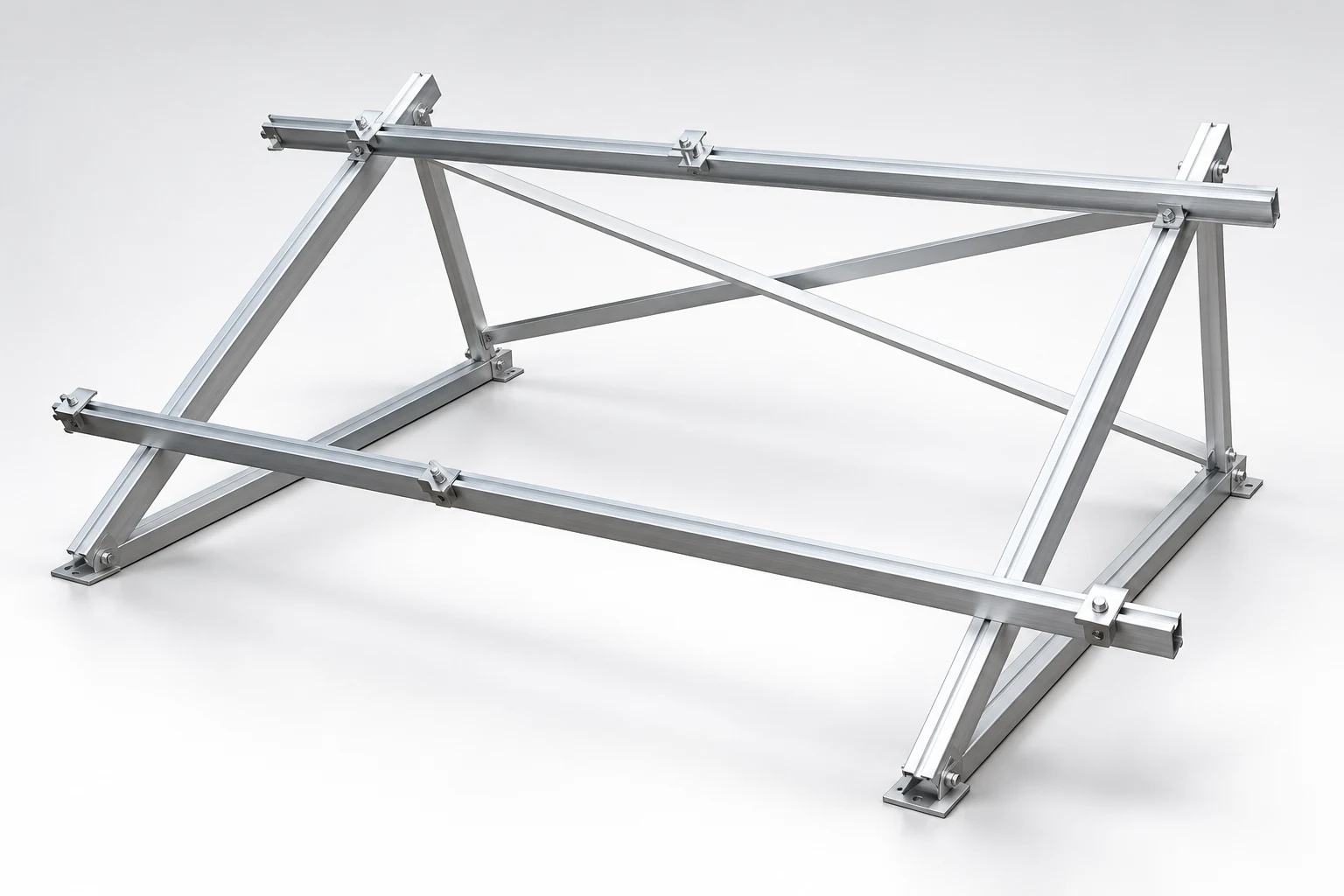

Aluminum PV mounting structure
The mounting structure can be customized for roof or ground conditions, with attention to weather resistance, corrosion resistance, installation, and maintenance.
Load Examples
Reference Runtime from the Source Material
For initial selection only.
| Individual load | Reference runtime |
|---|---|
| 3P air conditioner 2100 W | approximately 15 hours |
| Induction cooker 2000 W | approximately 14 hours |
| Washing machine 1000 W | approximately 30 hours |
| Water pump 800 W | approximately 35 hours |
The runtime figures are single-load reference values from the source material and do not mean that every appliance can run simultaneously for the stated duration. Actual runtime depends on solar irradiation, temperature, system efficiency, battery state of charge, depth of discharge, and load variation.
Before you inquire
Verify the Package Against Actual Energy Use
Provide the equipment list, simultaneous load, daily energy use, desired backup time, installation site, available area, local voltage and frequency, and estimated quantity.
